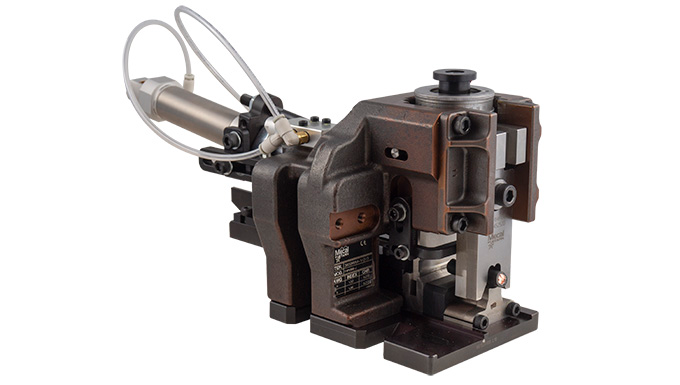

FMP Magnum Applicator - Pneumatic end feed

DESCRIPTION
Magnum pneumatic end feed
CRIMPING HEIGHT
(5.346?) 135.8mm
STROKE
(1.575/1.18?) 40/30mm
TERMINAL PITCH
not binding
TERMINAL THICKNESS
(0.047? to 0.059?) 1.2 to 1.5mm
WIRE SECTION
max 25mm2
FEEDING SYSTEM
air pressure 5/6 Bar
WEIGHT
(16.3 lb) 7.4 Kg
DIMENSION (mm)
W 128 x H 145.5 x D 320
DIMENSION
W 5.04? x H 5.72? x D 12.5?
CONTINUOUS REGULATING HEAD
(0.00039?) 0.01mm resolution.
(0.106?) 2.7mm range
Applicator for terminals linked end to end, with thickness between 1.2mm and 1.5mm, wire section up to 25mm2.
Pneumatic end-feed feeding system.
Exclusively fitted with a continuous regulating head having a resolution of 0.02 mm and a 2.7 mm range.
Non-resettable, 7 digit cycle counter.
Most of the wearing parts can be replaced without removing the applicator from the press.
Can be fitted to any crimping press having a crimping height of 135.8mm.
