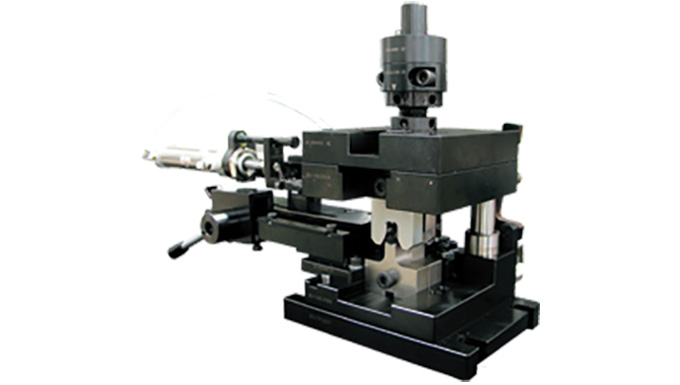

MSEP/S - Two Post Die Pneumatic Side Feed

DESCRIPTION
Pneumatic side feed two-post die
CRIMPING HEIGHT
(7.48/8.346in) 190/272 mm
STROKE
(1.968/1.575in) 50/40 mm
TERMINAL PITCH
not binding
TERMINAL THICKNESS
(0.059in) above 1.5 mm
WIRE SECTION
up to 75 mm2 (3/0 AWG)
FEEDING SYSTEM
air pressure 5/6 bar
WEIGHT
(37.4 lbs) 17 Kg
DIMENSION (mm)
W 450 x H 210 x D 150
DIMENSION (in)
W 17.7 x H 8.26 x D 5.9

For big linked terminals rolled over a reel to be unrolled (left to right).
Material thickness > 1.5 mm., wire section up to 75 mm2.
Continuous crimping height adjusting system.
Pneumatic (side-feed) feeding system.
All wearing parts can be replaced without removing the applicator from the press.
Cycle counter non available.
