AM 04

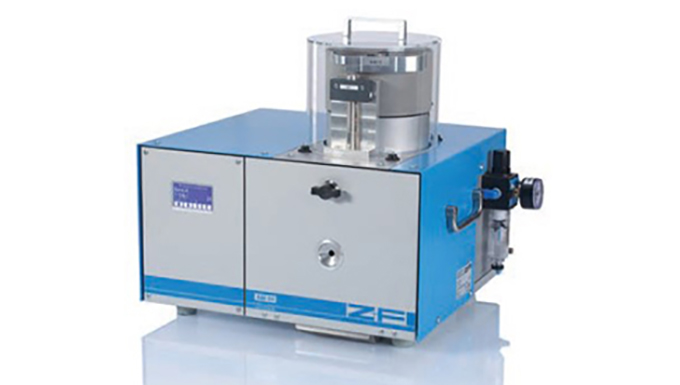

The AM 04 is an electropneumatic modular stripper-crimper for rapid and reliable processing of loose insulated Z+F ferrules. The stripper-crimper may be adapted by using the corresponding tools for ferrules of cross-sections from 4 up to 10 mm2 (AWG 12-8) and crimping lengths from 8 up to 18 mm.

Specification
For exact definition of the required tools the correct specification of the processing
ferrules as well as the employed wires are needed.

Option: Quadrocrimp-tool
The stripper-crimper can be equipped with a quadrocrimp-tool, which creates a
4-side quadratic crimp.

AM04
Technical data

Crimping range
4 -10 (16) mm2 (AWG 12-8)

Crimping length CL
Trapez 8 -18 mm I Quadro 8 -12 mm
(Trapezium 0.31 - 0.71 in./ Quadro 0.31 -0.47 in.)

lnfeed length
28 mm (1.10 in.)+ CL*

Cycle time approx.
2,5 s

Power supply
100 -240; 50/60; 100 V;Hz;VA

Air pressure
5,5 bar (79.77 psi)

Dimensions
(B x T x H) 530 x 400 x 460 mm
(w x d x h) (20.9 X 15.7 X 18.1 in)

Weight
42 kg (92.6 lbs)
